TBX51AMMO Tools&Test OM120A/OS420ST/OVN100

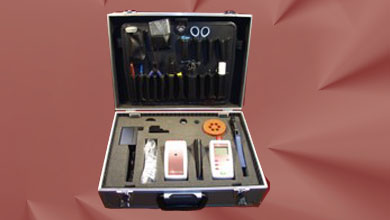

The Tools&Test set contains everything needed to be a complete package for the installer or the technician of fiber optic cables. This set contains the tools to terminate and polish SC, ST or FC connectors, a curing oven, a microscope for inspecting the connectors, a power meter and a source. The test set includes the following products:

OM120A
The meter is a general-purpose power meter suitable for a both premise and outside plant applications. The meter is suitable for both single-mode and multimode applications, depending on the source which is used.The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. The Sensor size is 1mm. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.

OS420ST
The sender is for premises and campus cabling networks with multimode fiber or for single-mode fibers up to 5 km at 1300 nm. The connector output can be adapted to any cable plant with hybrid adapters or hybrid cables. This unit is easy to operate with only a wavelength/power switch, which selects optical wavelengths or disables the unit. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combinated with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce ssthe output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. The sender is delivered in a protective rubber boot.

OVN100
The OVN100 is a portable curing oven that terminates 6 low cost epoxy/polish connectors at the same time in a matter of minutes. The OVN100 is the ideal tool for a fast, reliable and cost-effective assembly of connectors, with a 90% plus yield. The average time is 5 to 10 minutes and the temperature is 90C. The oven is for the standard ST, FC and SC connectors which are mounted by hand. The portable curing oven is rugged and molded into a rubber to allow field jobs. The power is a 12 Volt DC to 120 Volt AC adapter.


Features

TBX51AMMO Features:
l

Complete tool package for FC, SC and ST connectors

l

Curing oven

l

Microscope

l

Power meter

l

Source


TBX51AMMO Package Contents:
1 OM120A
1 OS420ST
1 AD100 (Universal 2.5mm)
1 OVN100
2 Product Manual
1 CALM Calibration Meter
1 CALS Calibration Sender
1 Trim Tool
4 Alco Wipe
1 Safety Glasses
1 Scribe
1 Armored Tube Cutter
1 Fiber Optic Stripper
1 Buffer Tube Stripper
1 Rotary Cable Stripper
1 Crimp Tool
1 Needle Nose Pliers
1 Polishing Plate
1 Polishing Puck
1 Polishing Pad
1 Tweezers
1 Kevlar Scissors
1 FCT100 (Continuity Tester)
1 MSP200XP (Microscope)

TBX51AMMO Options:
   - See options list

Specifications

OM120A (GP APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Multimode, Single-mode, Outside Plant and Premise
Calibrated Wavelength (λ) 850nm,1300nm, 1310nm, 1490nm & 1550nm
Dynamic Range +3 dBm to -55 dBm
Detector diameter 1 mm
Detector Type Germanium (Ge)
Connectors ST, SC, FC
Adaptor Options See options lis
Accuracy (@25C, -20.0 dBm) 0.25 dB
Measurement Units dBm (absolute) - dB (relative)
Resolution 0.1 dB
Controls 5 Soft Buttons
Buttons On/Off, Backlight, λ, dB-dBm, Zero Reference
Power 2 AA Batteries or AC Power Converter
Low Battery Indicator Yes
Display Graphical LCD with Backlight
Auto-Shutdown Yes
Protective rubber boot Yes
Testing reference guide Yes
Enclosure Size L: 125 mm W: 70 mm H: 30mm
Weight 230 gram
Operation Temperature -10C to +50C (45% Hum, non condensing)
Storage Temperature -20C to +60C (75% Hum, non condensing)

OS420ST (Multimode APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Permise cable networks with multimode fiber
Wavelength (λ) 850 nm and 1300 nm
Output type LED
Modulated Frequencies CW (Continuous Wave)
Stability, 1 hour Less than 0.05 dB
Power Output >-17 dBM, individually adjustable with mechanical screw
Connector ST
Controls Front panelslide switches
Power 2 AA Batteries or AC Power Converter
Low battery indicator Yes
Protective rubber boot Yes
Enclosure Size

L: 125 mm, W: 70 mm, H: 30 mm

Weight 180 gram
Operation Temperature -10C to +50C (45% Hum, non condensing)
Storage Temperature -20C to +60C (75% Hum, non condensing)

OVN100

SPECIFICATIONS, KEY FEATURES AND APPLICATIONS

Connector type

ST, FC and SC

Number of Ports

6
Temperature Range 90C
Time to reach 90C 15 Minutes
Temperature Stability +/- 5C
Accuracy +/- 8C
Average curing time 5 to 10 Minutes
Housing Molded rubber layer
Power 12 Volt DC to 120 Volt AC adapter 1,5 A
Qualified CE, RoHS and WEEE
