TBX51AMM Tools&Test OM120A/OS420ST

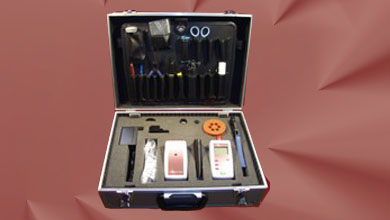

The Tools&Test set contains everything needed to be a complete package for the installer or the technician of fiber optic cables. This set contains the tools to terminate and polish SC, ST or FC connectors, a microscope for inspecting the connectors, a power meter and a source. The test set includes the following products:

OM120A
The meter is a general-purpose power meter suitable for a both premise and outside plant applications. The meter is suitable for both single-mode and multimode applications, depending on the source which is used.The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. The Sensor size is 1mm. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.

OS420ST

The sender is for premises and campus cabling networks with multimode fiber or for single-mode fibers up to 5 km at 1300 nm. The connector output can be adapted to any cable plant with hybrid adapters or hybrid cables. This unit is easy to operate with only a wavelength/power switch, which selects optical wavelengths or disables the unit. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combinated with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce the output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. The sender is delivered in a protective rubber boot.


Features

TBX51AMM Package Features:
l

Complete tool package for FC, SC and ST connectors

l Microscope
l

Power meter

l

Source


TBX51AMM Package Contents:
1 OM120A
1 OS420ST
1 AD100 (Universal 2.5mm)
2 Product Manual
1 CALM Calibration Meter
1 CALS Calibration Sender
1 Trim Tool
4 Alco Wipe
1 Safety Glasses
1 Scribe
1 Armored Tube Cutter
1 Fiber Optic Stripper
1 Buffer Tube Stripper
1 Rotary Cable Stripper
1 Crimp Tool
1 Needle Nose Pliers
1 Polishing Plate
1 Polishing Puck
1 Polishing Pad
1 Tweezers
1 Kevlar Scissors
1 FCT100 (Continuity Tester)
1 MSP200XP (Microscope)

TBX51AMM Options:
   - See options list

Specifications

OM120A (GP APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Multimode, Single-mode, Outside Plant and Premise
Calibrated Wavelength (λ) 850nm,1300nm, 1310nm, 1490nm & 1550nm
Dynamic Range +3 dBm to -55 dBm
Detector diameter 1 mm
Detector Type Germanium (Ge)
Connectors ST, SC, FC
Adaptor Options See options list
Accuracy (@25°C, -20.0 dBm) ±0.25 dB
Measurement Units dBm (absolute) - dB (relative)
Resolution 0.1 dB
Controls 5 Soft Buttons
Buttons On/Off, Backlight, λ, dB-dBm, Zero Reference
Power 2 AA Batteries or AC Power Converter
Low Battery Indicator Yes
Display Graphical LCD with Backlight
Auto-Shutdown Yes
Protective rubber boot Yes
Testing reference guide Yes
Enclosure Size L: 125 mm W: 70 mm H: 30mm
Weight 230 gram
Operation Temperature -10°C to +50°C (45% Hum, non condensing)
Storage Temperature -20°C to +60°C (75% Hum, non condensing)

OS420ST (Multimode APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Permise cable networks with multimode fiber
Wavelength (λ) 850 nm and 1300 nm
Output type LED
Modulated Frequencies CW (Continuous Wave)
Stability, 1 hour Less than 0.05 dB
Power Output >-17 dBM, individually adjustable with mechanical screw
Connector ST
Controls Front panelslide switches
Power 2 AA Batteries or AC Power Converter
Low battery indicator Yes
Protective rubber boot Yes
Enclosure Size

L: 125 mm, W: 70 mm, H: 30 mm

Weight 180 gram
Operation Temperature -10°C to +50°C (45% Hum, non condensing)
Storage Temperature -20°C to +60°C (75% Hum, non condensing)
Qualified CE, RoHS and WEEE
