This test set is the complete solution necessary for the installer to test, terminate, trouble shoot and document fiber optic systems. The test set is designed to allow testing of all parameters of fiber optic networks, including output power levels from the fiber, coupled source power and attenuation loss in a fiber. The test set includes the following products:

The meter is a general-purpose power meter suitable for a both premise and outside plant applications. The meter is suitable for both single-mode and multimode applications, depending on the source which is used.The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. The Sensor size is 1mm. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.

The sender is for outside plant and single-mode fiber. The connector output can be adapted to any cable plant with hybrid adapters or hybrid cables. This unit is easy to operate with a wavelength/power switch, which selects optical wavelengths or disables the unit. There is also a switch which select between either the CW or 2 kHz output for the transmitting wavelength. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combinated with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce the output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. The sender is delivered in a protective rubber boot..

The MSP200XP is a high-resolution glass optics scope with 200x magnification for both multimode and single-mode fibers. The MSP200XP is portable and is an ideal field tool for inspecting fiber terminations. The Fiber Microscope utilizes a white LED for coaxial illumination. Light is focused into the optical path (axis) so that it comes out the tip of the ferrule and strikes the sample perpendicular to the fiber end-face. It produces excellent detail of scratches and contamination. The MSP200XP is equipped with an attenuating, laser safety filter to reduce the risk of eye damage when the user accidentally views a fiber with active emissions. The MSP200XP is equipped with a standard 2,5 mm adapter, optional is an 1,25 mm adapter.

This adapter is for mounting the optical fiber connector to the meter. Due to the screw thread the adapter is easily to connect. Different adapters are available for different sorts connectors.

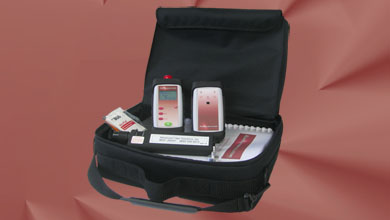

OLK51AXPSMFC Package Contents:
1 OM120A
1 OS430FC
1 MSP200XP
1 AD120 (FC)
2 Product Manual
1 CALM Calibration Meter
1 CALS Calibration Sender
1 Trim Tool
4 Alco Wipe
   - See options list
Applications Multimode, Single-mode, Outside Plant and Premise
Calibrated Wavelength (λ) 850nm,1300nm, 1310nm, 1490nm & 1550nm
Dynamic Range +3 dBm to -55 dBm
Detector diameter 1 mm
Detector Type Germanium (Ge)
Connectors ST, SC, FC
Adaptor Options See options lis
Accuracy (@25C, -20.0 dBm) 0.25 dB
Measurement Units dBm (absolute) - dB (relative)
Resolution 0.1 dB
Controls 5 Soft Buttons
Buttons On/Off, Backlight, λ, dB-dBm, Zero Reference
Power 2 AA Batteries or AC Power Converter
Low Battery Indicator Yes
Display Graphical LCD with Backlight
Auto-Shutdown Yes
Protective rubber boot Yes
Testing reference guide Yes
Enclosure Size L: 125 mm W: 70 mm H: 30mm
Weight 230 gram
Operation Temperature -10C to +50C (45% Hum, non condensing)
Storage Temperature -20C to +60C (75% Hum, non condensing)
Applications Outside plant single mode
Wavelength (λ) 1310 nm and 1550 nm
Output type Laser
Modulated Frequencies 2 kHz/CW (Continuous Wave)
Stability, 1 hour Less than 0.05 dB
Power Output >-8 dBm, individually adjustable with mechanical screw
Connector FC
Controls Front panel slide switches
Power 2 x AA Batteries or AC Power Converter
Low battery indicator Yes
Protective rubber boot Yes
Enclosure Size L: 125 mm, W: 70 mm, H:30 mm
Weight Compact Handheld; L 12,55 cm x W 6,99 cm x H 3,05 cm
Operation Temperature -10C to +50C (45% Hum, non condensing)
Storage Temperature -20C to +60C (75% Hum, non condensing)
Applications Multimode and Single mode
Optical Magnification 200x
LED Rated life 100,000 Hrs
Controls Momentary On/Off switch, Fine-Focus control
Safety Filter Built in IR filter

Adapter Interface

2,5 mm universal standard optional 1,25 mm available
Power Requirements 3 pieces 1,5 Volt AAA alkaline Batteries
Size L: 225 mm, Diameter 32 mm
Weight 0.6Kg
Qualified CE, RoHS and WEEE
