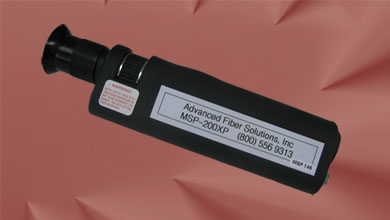

MSP200XP Microscope


The MSP200XP is a high-resolution glass optics scope with 200x magnification for both multimode and single-mode fibers. The MSP200XP is portable and is an ideal field tool for inspecting fiber terminations. The Fiber Microscope utilizes a white LED for coaxial illumination. Light is focused into the optical path (axis) so that it comes out the tip of the ferrule and strikes the sample perpendicular to the fiber end-face. It produces excellent detail of scratches and contamination. The MSP200XP is equipped with an attenuating, laser safety filter to reduce the risk of eye damage when the user accidentally views a fiber with active emissions. The MSP200XP is equipped with a standard 2,5 mm adapter, optional is an 1,25 mm adapter.

Specifications

Applications Multimode and Single mode
Optical Magnification 200x
LED Rated life 100,000 Hrs
Controls Momentary On/Off switch, Fine-Focus control
Safety Filter Built in IR filter

Adapter Interface

2,5 mm universal standard – optional 1,25 mm available
Power Requirements 3 pieces 1,5 Volt AAA alkaline Batteries
Size L: 225 mm, Diameter 32 mm
Weight 0.6Kg
Qualification

CE, ROHS and WEEE
