| OLK51NSM Test Set Laser OM120NI/OS430N |
| |
 |
| |

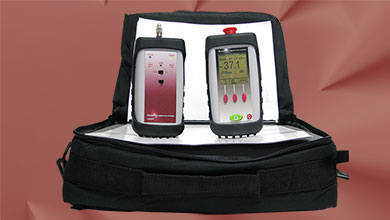

| The OLK51NSM Test kit is designed to test single-mode fiber optic cable. The OLK51NSM combines the OM120NI optical power meter and the OS430N laser sender and is ideally suited for testing long haul and outside plant fiber optic networks with single mode cables. The OM120NI power meter includes such features as a enlarged screen for optimal viewing, extended battery life (100+ hours), tone detection (270Hz, 330Hz, 1KHz & 2KHz), dBm\dB\Watts read out and an auto off feature (optional 10 or 30 min). The unit utilizes an InGaAs detector and its calibrated wavelengths include 850/1300/1310/1490/1550 & 1625nm. All wavelengths have a Set Reference feature which stores selected wavelengths absolute value to memory. The OS430N is a 1310nm /1550nm Laser light source, which comes equipped with interchangeable ST, FC and SC connector adapters). |
| |
| Features |
| |
| OLK51NSM Features: | | l | Compact light weight carrying case | | l | 850/1300/1310/1490/1550 & 1625nm | | l | dBm/W (absolute) + dB (relative) measurement | | l | Extended Graphical display for optimal viewing | | l | Zero reference with dBm value displayed | | l | dBm and Watts displayed simultaneously | | l | Set Reference Feature for all calibrated wavelengths | | l | 0.1dB /0.01dB Resolution (Selectable) | | l | Display back light | | l | Auto power off (10 or 30 min option) | | | | OLK51NSM Package Contents: | | 1 | OM120NI Meter | | 1 | OS430N Laser Sender | | 1 | AD100 (2.5mm Universal Adapter) | | 1 | Alco wipes | | 1 | CALM Calibration Meter | | 1 | Product Manual | | | | OLK51NSM Options: | | l | FMD200 Microscope |
|
| |
| Specifications |
|
| OM120NI | SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
| Applications | Single Mode, Multimode |
| Calibrated Wavelengths | 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm |
| Dynamic Range | ~+6dBm to -60dBm |
| Detector Type | 1mm InGaAs |
| Accuracy (@25°C, -20.0dBm) | ±0.25 dB |
| Measurement Units | dBm (absolute)\Watts\dB (relative) |
| Resolution | 0.1 or 0.01 dB |
| Controls | 5 Soft Buttons |
| Buttons | On/Off, Backlight, λ , dB-dBm, Zero Reference |
| Power | 1 x 9V Batteries or AC Power Converter |
| Low Battery Indicator | Yes |
| Display | Graphical LCD with Backlight |
| Adaptor Options | ST, SC, FC, 2.5mm Universal & LC (other adapters also available) |
| Auto-Shutdown | Yes |
| Protective Rubber Boot | Yes |
| Testing Reference Guide | Yes |
| Enclosure Size | Compact Handheld (L-4.94"/W-2.75"/H- 1.2") |
| Operation Temperature | -10°C to +50°C (45% Hum, non condensing) |
| Storage Temperature | -20°C to +60°C (75% Hum, non condensing) |
| Qualified | CE, RoHS and WEEE |
| | |
| OS430N | SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
| Applications | Single mode, outside plant and long haul applications |
| Wavelengths (λ) | 1310nm & 1550nm |
| Wavelength Peak | 1310nm ± 10nm |
| | 1550nm ± 10nm |
| Output Type | Laser |
| Output Power | >-5.0dBm @1310 & 1550
Into single mode fiber (Side adjustable trim pots for output power level adjustment) |
| Stability per hour (after 5 min warm up) | Less than 0.1 dB |
| Connector Style | ST/SC/FC (Interchangeable) |
| Modulated Frequencies | 2Khz |
| Battery | 1 x 9V |
| Emitter Type | Class 1 Laser Product |
| Protective Rubber Boot | Yes |
| Enclosure Size | Compact Handheld (L-4.94"/W-2.75"/H- 1.2") |
| Operation Temperature | -10°C to +50°C (45% Hum, non condensing) |
| Storage Temperature | -20°C to +60°C (75% Hum, non condensing) |
| Qualified | CE, RoHS and WEEE |
|
|
