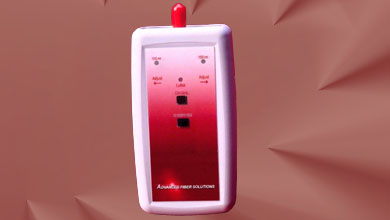

OS405UNI25BF2.5 Visual Fault Locator Bare fiber 2.5mm



The visible laser cable fault locator (635nm) allows the operator to find faults in fiber optic cables, even in the OTDR dead zone, By injecting a bright red visible light in the fiber, locations of losses will be visible. A powerful laser is used for this. At this way breaks, bends, injuries or bad connectors can be detected visually. This can be done by the cladding of bare fibers and also through the typical yellow or orange jacket used on most single fiber cables. Fibers can be traced as far as 4 km using this instrument. The visual fault locator uses a visible diode laser in the compact case for pocket size convenience. Other applications include identifying connectors in patch panels and fibers during splicing operations. It is also a useful tool for continuity end-to-end checks. There is a fixed connector for one standard available, at this way the light is coupled very accurate. The visual fault locator has a protective rubber boot.


Features

OS405UNI25BF2.5 Features:
l

635 nm Class II Laser

l

High power laser of approximately 1 mW

l

Accurate coupling of the light

l

CW and 1 Hz option

l Finding breaks, bends and injuries
l Visible through cladding of bare fibers and through yellow or orange jacket
l

Checking and finding of fiber optic cables

l

Checking of connectors

l

Locating and checking of continuity

l

Fault locator for MM and SM networks

l

Finding connections on patch panels

l

Low battery indicator

l

Ruggedised case

l

Protective Rubber boot


OS405UNI25BF2.5 Package Contents:
1 OS405UNI25BF2.5 Visual Fault Locator Bare fiber 2.5mm
1 Product Spec Sheet
1 Carrying Pouch
1 Rubber Boot

Specifications

OS405UNI25BF2.5 SPECIFICATIONS, KEY FEATURES AND APPLICATIONS

Applications

Multimode and Singlemode
Connector 2.5mm Bare fiber
Type of Emission Laser
Modulated Frequencies 1Hz
Wavelength 635nm
Stability, 1 hour < 0.5dB
Output Power Approx. 1 mW
Maximal distance 4 km
Controls 3 Position switch, CW-OFF-1Hz
Power 2 x AA Batteries or AC Power Converter
Low Battery Indicator Yes
Protective Rubber boot Yes
Enclosure Size L: 125 mm, W: 70 mm, H: 30mm
Weight 180 Grams
Operation Temperature -10C to +50C (45% Hum, non condensing)
Storage Temperature -20C to +60C (75% Hum, non condensing)
Qualified  CE, RoHS and WEEE
