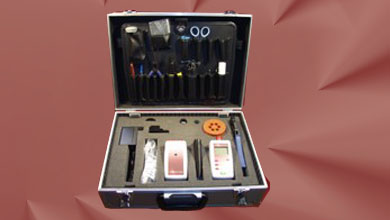

The Tools&Test set contains everything needed to be a complete
package for the installer or the technician of fiber optic
cables. This set contains the tools to terminate and polish SC,
ST or FC connectors, a curing oven, a microscope for inspecting
the connectors, a power meter and a source. The test set
includes the following products:
meter is a general-purpose power meter suitable for a both
premise and outside plant applications. The meter is suitable
for both single-mode and multimode applications, depending on
the source which is used.The
meter measures optical power, loss (attenuation) and optical
return loss. The meter is calibrated at industry standard
wavelengths (NIST traceable). The zero reference function is
ideal for testing fiber optic cables in dB, the reference value
is saved in the power meter.
The Sensor size is 1mm.
A universal 2,5 mm universal
adapter with a threaded housing is included, other adapters are
also available as an accessory. Due to the backlight the data is
always visible. The meter is delivered in a
protective rubber boot.
The sender is for outside plant and single-mode fiber. The
connector output can be adapted to any cable plant with hybrid
adapters or hybrid cables. This unit is easy to operate with a
wavelength/power switch, which selects optical wavelengths or
disables the unit. There is also a switch which select between
either the CW or 2 kHz output for the transmitting wavelength.
The light source is designed for performing insertion loss
measurements on fiber optic links when used with an optical
power meter. Whether testing outside plant or premise an optical
source is the perfect tool when combinated with an optical power
meter. The output is stabilized to ensure accurate test results
per current TIA/EIA requirements. The wavelengths are
individually adjustable with a mechanical screw to have a
variable attenuator or to reduce the output power. This make it
able to save battery power when high optical output power is not
necessary, or to turn up the power to test long runs. The sender
is delivered in a protective rubber boot.
The OVN100 is a portable curing oven that terminates 6 low cost
epoxy/polish connectors at the same time in a matter of minutes.
The OVN100 is the ideal tool for a fast, reliable and
cost-effective assembly of connectors, with a 90% plus yield.
The average time is 5 to 10 minutes and the temperature is 90°C.
The oven is for the standard ST, FC and SC connectors which are
mounted by hand. The portable curing oven is rugged and molded
into a rubber to allow field jobs. The power is a 12 Volt DC to
120 Volt AC adapter.
