OLK53ASMST Test Set OM150A/OS430ST |
|
|
|
This test set is the complete solution necessary for the
installer to test, terminate, trouble shoot and document fiber
optic systems. The test set is designed to allow testing of all
parameters of fiber optic networks, including output power
levels from the fiber, coupled source power and attenuation loss
in a fiber. The test set includes the following products:
OM150A
The meter is
designed for CTV CATV, FTTx and long wavelengths
applications. The meter optimizes a
Silicon detector suitable for large core fibers. It is the ideal
tool for working with long wavelengths whether the system is
glass, plastic or multimode fibers.The
meter measures optical power, loss (attenuation) and optical
return loss. The meter is calibrated at industry standard
wavelengths (NIST traceable). The zero reference function is
ideal for testing fiber optic cables in dB, the reference value
is saved in the power meter. A universal 2,5 mm universal
adapter with a threaded housing is included, other adapters are
also available as an accessory. Due to the backlight the data is
always visible. The meter is delivered in a
protective rubber boot.
OS430ST
The sender is for outside plant and single-mode fiber. The
connector output can be adapted to any cable plant with hybrid
adapters or hybrid cables. This unit is easy to operate with a
wavelength/power switch, which selects optical wavelengths or
disables the unit. There is also a switch which select between
either the CW or 2 kHz output for the transmitting wavelength. The
light source is designed for performing insertion loss
measurements on fiber optic links when used with an optical
power meter. Whether testing outside plant or premise an optical
source is the perfect tool when combinated with an optical power
meter. The output is stabilized to ensure accurate test results
per current TIA/EIA requirements. The wavelengths are
individually adjustable with a mechanical screw to have a
variable attenuator or to reduce the output power. This make it
able to save battery power when high optical output power is not
necessary, or to turn up the power to test long runs. The sender
is delivered in a protective rubber boot.
|
|
Features |
|

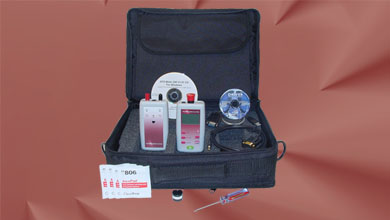

OLK53ASMST Package Contents: |
1 |
OM150A |
1 |
OS430ST |
2 |
Product Manual |
1 |
AD100 (ST) |
1 |
CALM Calibration Meter |
1 |
CALS Calibration
Sender |
1 |
Trim Tool
|
4 |
Alco Wipe |
|
OLK53ASMST
Options: |
|
- See
options list |
|
|
Specifications |
|
OM150A (FTTx+CTV CATV APPLICATIONS) |
SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
Applications |
Single-mode, Multimode, Long wavelengths, CTV CATV, FTTx |
Calibrated Wavelength (λ) |
850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm |
Dynamic Range |
+20dBm to -50dBm |
Detector Type |
InGaAs High Power |
Connectors |
ST,
SC, FC |
Adaptor Options |
See
options
list |
Accuracy (@25°C, -20.0 dBm) |
±0.2 dB (NIST Traceable) |
Measurement Units |
dBm/Watts
(absolute) - dB (relative) |
Resolution |
0.1 dB or 0.01 dB (user selectable) |
Controls |
5
Soft Buttons |
Buttons |
On/Off, Backlight,
λ,
dB-dBm, Zero Reference |
Power |
2
AA Batteries or AC Power Converter |
Low
Battery Indicator |
Yes |
Display |
Graphical LCD with Backlight |
Auto-Shutdown |
Yes |
Protective rubber boot |
Yes |
Testing reference guide |
Yes |
Enclosure Size |
L:
125 mm W: 70 mm H: 30mm |
Weight |
230
gram |
Operation Temperature |
-10°C to +50°C (45% Hum, non condensing) |
Storage Temperature |
-20°C to +60°C (75% Hum, non condensing) |
|
OS430ST (Single mode APPLICATIONS) |
SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
Applications |
Outside plant single-mode |
Wavelength (λ) |
1310nm/1550nm |
Output type |
Laser |
Modulated
Frequencies |
2 kHz/CW (Continuous Wave) |
Stability, 1 hour |
Less than 0.05 dB |
Power Output |
>-8 dBm,
individually adjustable with mechanical screw |
Connector |
ST |
Controls |
Front panelslide switches |
Power |
2 x AA Batteries
or AC Power Converter |
Low battery indicator |
Yes |
Protective rubber boot |
Yes |
Enclosure Size |
L: 125 mm, W: 70 mm, H: 30 mm |
Weight |
180 Grams |
Operation Temperature |
-10°C to +50°C (45% Hum, non condensing) |
Storage Temperature |
-20°C to +60°C (75% Hum, non condensing) |
Qualified |
CE, RoHS and WEEE |
|
|
