OLK7FTTHST Test Set OM150A/OS530FTTHST


This test set is the complete solution necessary for the installer to test, terminate, trouble shoot and document fiber optic systems. The test set is designed to allow testing of all parameters of fiber optic networks, including output power levels from the fiber, coupled source power and attenuation loss in a fiber. The test set includes the following products:

OM150A
The meter is designed for CTV CATV, FTTx and long wavelengths applications. The meter optimizes a Silicon detector suitable for large core fibers. It is the ideal tool for working with long wavelengths whether the system is glass, plastic or multimode fibers.The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.

OS530FTTHST
The sender is for outside plant and single-mode fiber. The connector output can be adapted to any cable plant with hybrid adapters or hybrid cables. This unit is easy to operate with a wavelength/power switch, which selects optical wavelengths or disables the unit. There is also a switch which select between either the CW or 2 kHz output for the transmitting wavelength. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combined with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce the output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. The sender is delivered in a protective rubber boot.


Features

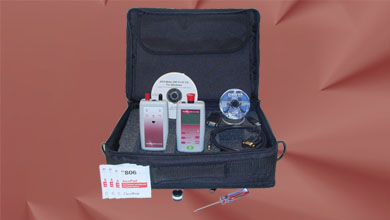

OLK7FTTHST Package Contents:
1 OM150A Meter ST/SC/FC
1 OS530FTTHST Laser Sender ST
1 AD100 FC/SC/ST adapter
2 Product manuals
1 CALM Calibration Meter
1 CALS Calibration Sender
1 Trim Tool
4 Alco Wipe

Specifications

OM150A (FTTx+CTV CATV APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Single-mode, Multimode, Long wavelengths, CTV CATV, FTTx
Calibrated Wavelength (λ)

850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm

Dynamic Range +20dBm to -50dBm
Detector Type InGaAs High Power
Connectors ST, SC, FC
Adaptor Options See options list
Accuracy (@25°C, -20.0 dBm) ±0.2 dB (NIST Traceable)
Measurement Units dBm/Watts (absolute) - dB (relative)
Resolution 0.1 dB or 0.01 dB (user selectable)
Controls 5 Soft Buttons
Buttons On/Off, Backlight, λ, dB-dBm, Zero Reference
Power 2 AA Batteries or AC Power Converter
Low Battery Indicator Yes
Display Graphical LCD with Backlight
Auto-Shutdown Yes
Protective rubber boot Yes
Testing reference guide Yes
Enclosure Size L: 125 mm W: 70 mm H: 30mm
Weight 230 gram
Operation Temperature -10°C to +50°C (45% Hum, non condensing)
Storage Temperature -20°C to +60°C (75% Hum, non condensing)

OS530FTTHST (POF APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications FTTH PONS & Singlemode
Wavelength (λ) 1310nm 1490nm & 1550nm
Output type Laser
Modulated Frequencies 270hz, 1Khz, 2Khz
Stability, 1 hour (after 5 min warm up) Less than 0.1dB (Typical)
Power Output -5 dBm (typical) into 9/125 fiber
Connector ST
Controls Front panel slide switches
Power 2 x AA Batteries or AC Power Converter
Low battery indicator Yes
Protective rubber boot Yes
Enclosure Size L: 125 mm, W: 70 mm, H:30 mm
Weight 230 gram
Operation Temperature -10°C to +50°C (45% Hum, non condensing)
Storage Temperature -20°C to +60°C (75% Hum, non condensing)
Qualified CE, RoHS and WEEE
