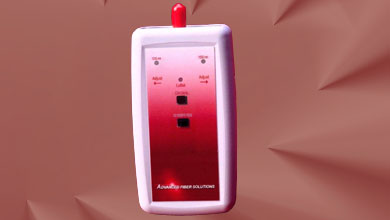

OS540SC Laser Sender SC



The sender is for outside plant and single-mode fiber. The connector output can be adapted to any cable plant with hybrid adapters or hybrid cables. This unit is easy to operate with a wavelength/power switch, which selects optical wavelengths or disables the unit. There is also a switch which select between either the CW or 2 kHz output for the transmitting wavelength. The CW or 2Khz tone is for sending a tone down the fiber it is useful if the end user has a tone identifier that ca be clipped onto to the fiber to identify and individual fiber. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combined with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce the output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. The sender is delivered in a protective rubber boot.


Features

OS540SC Features:
l Outside plant and single-mode fiber
l CW or 2 kHz output for transmitting wavelength
l Adjustable power output with mechanical screw
l Certify links per TIA/EIA standards
l Low battery indicator
l Rugged
l Handheld
l Lightweight
l Easy to use

OS540SC Package Contents:
1 OS540SC Laser Sender SC

Specifications

OS540SC (POF APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Outside plant and single mode
Wavelength (λ) 1310nm 1550nm & 1625nm
Output type Laser
Modulated Frequencies 270hz, 1Khz, 2Khz
Stability, 1 hour (after 5 min warm up) Less than 0.1dB (Typical)
Power Output -5 dBm (typical) into 9/125 fiber
Connector SC
Controls Front panel slide switches
Power 2 x AA Batteries or AC Power Converter
Low battery indicator Yes
Protective rubber boot Yes
Enclosure Size L: 125 mm, W: 70 mm, H:30 mm
Weight 180 gram
Operation Temperature -10°C to +50°C (45% Hum, non condensing)
Storage Temperature -20°C to +60°C (75% Hum, non condensing)
Qualified CE, RoHS and WEEE
