UOR203 OTDR PC USB 40/38dB ST/SC/FC


The OTDR measures and certifies optical fibers and makes a certification report. The OTDR measures the attenuation, the loss and breaks by fiber, connectors and splices. At this way splices and dirty, bad or wrong mounted connectors will be found. A complete overview of the link will be showed as well as the distance to any event (such as a connector or a splice) and the total length. The OTDR is the perfect tool for the construction, maintenance and restoration of cable plants and also as an educational tool. The OTDR is very accurate and therefore perfectly useful in a laboratory. Also the OTDR is portable and rugged enough for field applications. The OTDR has a low power consumption. The OTDR is used in conjunction with a PC or Laptop with a USB interface, eliminating the need for batteries completely. The enclosed software runs off of Vista, Windows 7/9x/NT/2000, and XP versions. With this software the OTDR will be controlled completely by a PC or Laptop. All measurements can be displayed, stored, read, printed and analysed, even when the OTDR is disconnected. It is possible to compare different traces with each other. The OTDR will be delivered completely.

Features

UOR203 Features:
l Clear certification report
l High accuracy
l Compact model
l Rugged case
l Lightweight
l Automatic test function
l Filtering function
l Two test functions:
  - Real time measurement
  - Measurement with averages
l Events table, like splices, connectors, break and attenuation
l Traces stored directly to laptop or PC hard drive
l USB powered, no external power required
l Included Windows application software (Bellcore*.sor format)

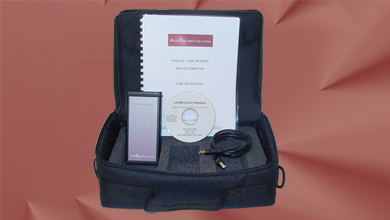

UOR203 Package Contents:
1 UOR203 OTDR PC USB 40/38dB ST/SC/FC
1 uOTDR Software for Win V3.0
1 USB cable (CBL300)
1 CALO Calibration OTDR
1 Small rugged case
1 Product manual

Specifications

Applications Singlemode
Connector ST/SC/FC
Wavelength (±30nm) 1310/1550 nm
Dynamic range 1310nm = 40dB
1550nm = 38dB
Attenuation Dead Zone 6 meter
Event Dead Zone 1,5 meter
Pulsewidth 10 to 20.000 ns
Distance Range 2, 5, 10, 20, 40, 80, 120, 160, 240 km
Loss Resolution 0,001 dB
Distance accuracy ±(0.5+5´10-5´L+(dn/n)´L)
Refractive Index Range Setting 1,0000 to 2,0000
Unit measurement Meter, feet, km en kf
Input USB
Power From USB port from laptop of PC
Supply Current From USB port <200 mA
Software Windows (Bellcore *.sor formaat)
Requirements laptop or PC Vista, Windows 7/9x/NT/2000 and XP versions
Language English, Spanish and Korean
Return Loss Yes
Resolution (dB) 0,1 dB
Sampling resolution (m) 0,5 to 18 m
LSA measurement Yes
Digital distance fault indication Yes
Attenuation coeficient Yes
Distance resolutions 0,32 m
Number of Sampling Points 16.000
Automatic measurement with threshold level Yes
Housing Metal
Size L: 158,8 mm; W: 76,2 mm; H: 31,8 mm
Weight 323 gram (unit only)
1,9 kg (unit with accessories)
Operation Temperature 0°C to +40°C
Relative Humidity 95% without condensation
Qualified CE, RoHS and WEEE
