UOR210 OTDR PC USB 35/34/32 ST/SC/FC |
|

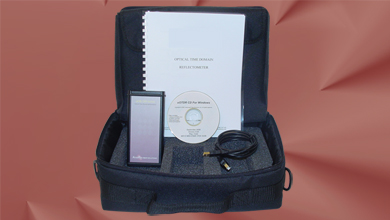

![](webfoto_uor200fst.jpg) |
|
The OTDR measures and certifies optical fibers and makes a
certification report. The OTDR measures the attenuation, the
loss and breaks by fiber, connectors and splices. At this way
splices and dirty, bad or wrong mounted connectors will be
found. A complete overview of the link will be showed as well as
the distance to any event (such as a connector or a splice) and
the total length. The OTDR is the perfect tool for the
construction, maintenance and restoration of cable plants and
also as an educational tool. The OTDR is very accurate and
therefore perfectly useful in a laboratory. Also the OTDR is
portable and rugged enough for field applications. The OTDR has
a low power consumption. The OTDR is used in conjunction with a
PC or Laptop with a USB interface, eliminating the need for
batteries completely.
The enclosed software
runs off of Vista, Windows 7/9x/NT/2000, and XP versions. With this software the OTDR will be
controlled completely by a PC or Laptop. All measurements can be
displayed, stored, read, printed and analysed, even when the
OTDR is disconnected. It is possible to compare different traces
with each other. The OTDR will be delivered completely. |
|
Features |
|
UOR210 Features: |
l |
FTTH unit |
l |
Clear certification report |
l |
High accuracy |
l |
Compact model |
l |
Rugged case |
l |
Lightweight |
l |
Automatic test function |
l |
Filtering function |
l |
Two test functions: |
|
- Real time measurement |
|
- Measurement with averages |
l |
Events table, like splices, connectors, break and
attenuation |
l |
Traces stored directly to laptop or PC hard drive |
l |
USB powered, no external power required |
l |
Included Windows application software (Bellcore*.sor format) |
|
UOR210 Package Contents: |
1 |
UOR210 OTDR PC
USB 35/34/32 ST/SC/FC |
1 |
uOTDR Software for Win V3.0 |
1 |
USB cable (CBL300) |
1 |
CALO Calibration OTDR |
1 |
Small rugged case |
1 |
Product manual |
|
|
Specifications |
|
Applications |
Singlemode (FTTH) |
Connector |
ST/SC/FC |
Wavelength (±30nm) |
1310/1550/1625nm |
Dynamic range |
1310nm = 35dB |
|
1550nm = 34dB |
|
1625nm = 32dB |
Attenuation Dead Zone |
6 Meters |
Event Dead Zone |
1.5 Meters |
Pulsewidth |
10 to 20000 nS |
Distance Range |
5, 10, 20, 40, 80, 120, 160, 240 Km |
Loss Resolution |
0.001 dB |
Distance accuracy |
±(0.5+5´10-5´L+(δn/n)´L) |
Refractive Index Range Setting |
1.0000 to 2.0000 |
Unit measurement |
Meter, feet, km and kf |
Input |
USB |
Power |
From USB port from laptop of PC |
Supply Current From USB Port |
<200mA |
Software |
Windows (Bellcore *.sor formaat) |
Requirements laptop or PC |
Vista,
Windows 7/9x/NT/2000 and XP versions |
Language |
English, Spanish and Korean |
Return Loss |
Yes |
Resolution (dB) |
0.1 dB |
Sampling resolution (m) |
0,5
to 18 m |
LSA measurement |
Yes |
Digital distance
fault indication |
Yes |
Attenuation
coeficient |
Yes |
Distance
resolutions |
0.32M |
Number of Sampling Points |
16.000 |
Automatic measurement with
threshold level
|
Yes |
Housing |
Metal |
Size |
L:
158,8 mm; W: 76,2 mm; H: 31,8 mm |
Weight |
323 gram (unit
only)
1,9 kg (unit with accessories) |
Operation Temperature |
0° to +40°C |
Relative Humidity |
95% without condensation |
Qualified |
CE, RoHS and WEEE |
|
|
