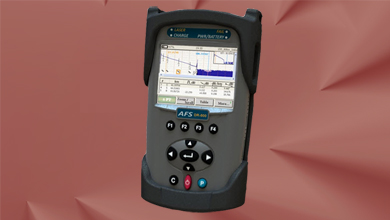

DR527C OTDR 37/36/34dB ST/SC/FC |
| |
 |
| |
|
The DR527C is ideal for handheld use and pocket transportation.
It is simple to operate and is the perfect installation,
maintenance and link trouble shooting tool. It is the ideal OTDR
for either the inexperienced or the experienced technician. The
unit supports both a manual mode for the expert user which
enables parameter setup and an automatic mode for the less
experienced user which allows one touch auto run testing. The
unit utilizes active sync for seamless USB connectivity with
desktop software for advanced data analysis and storage
capabilities. It is fully compliant and compatible with the .sor
file format outlined in the belcore GR-196 OTDR data
standardization document.
It
is a full featured OTDR offering a wide dynamic range.
It also offers
a long battery life enabling the technician to continuing test
up to eight hours.
The unit is
light weight weighing less than 725 grams. It is extremely
rugged with a thick protective rubber boot surrounding the outer
case. |
| |
|
Features |
| |
|
DR527C Features: |
|
l |
Compact and
rugged case. |
|
l |
Events table and
auto test function. |
|
l |
Weight less than
725 grams. |
|
l |
Bellcore .sor
format compatible. |
|
l |
USB
jump drive compatible for extra storage. |
|
l |
9 hours of
operation, fast charging Li-Ion battery. |
|
l |
High
contrast full color display. |
|
l |
User
friendly and easy to operate. |
|
|
|
DR527C
Package Contents: |
|
1 |
DR527C |
|
1 |
ABL0
Calibration OTDR with power meter |
|
1 |
USB data transfer cable |
|
1 |
DR500 series PC software |
|
1 |
Soft carrying
case |
|
1 |
Product manual |
|
|
|
DR527C Options: |
|
l |
See
options list |
|
| |
|
Specifications |
| |
|
Applications |
Singlemode FTTx (Tri-wave) |
|
Connector |
Universal connectors ST/SC/FC (UPC) |
|
Class |
C (close event detector and large attenuation
measurements like PONS networks) |
|
Wavelength (±30nm) |
1310/1490/1550nm |
|
Dynamic range |
1310nm = 37dB |
|
|
1490nm = 36dB |
|
|
1550nm = 34dB |
|
Attenuation Dead Zone |
5 M |
|
Event Dead Zone |
1 M |
|
Pulsewidth |
6….1000nS |
|
Distance Range |
2,5,10,20,40,80,120,160,240 Km |
|
Data Points |
Up to 64,000 |
|
Loss Resolution |
0.001dB |
|
Distance accuracy |
±(0.5+5´10-5´L+(dn/n)´L) |
|
Refractive Index Range Setting |
1.0000…..2.0000 |
|
Unit measurement |
Feet or Meters |
|
Input/Connection with PC |
USB and ActiveSync |
|
Power supply |
Li-Ion battery (9 hours) /
External supply 12V @ 1.5amps |
|
Software |
Windows (Bellcore *.sor formaat) |
|
Requirements laptop or PC |
Vista,
Windows 7/ 9x/NT/2000 and XP versions |
|
Language |
English |
|
OTDR Modes |
Full Auto, Expert and Real Time |
|
Return
Loss |
Yes |
|
Loss
Resolution (dB) |
0.001 |
|
Sampling resolution (m) |
0.16m…..7.6m |
|
Storage Capability |
~ 1000 traces |
|
LSA
measurement |
Yes |
|
Digital distance fault indication |
Yes |
|
Attenuation coeficient |
Yes |
|
Attenuation Measurement
Accuracy |
0.05dB |
|
Automatic measurement with threshold level |
Yes |
|
Display |
8cm TFT 16 bit full color |
|
Housing |
ABS |
|
Size (without boot) |
16cm X 9cm X 5cm |
|
Weight |
725 grams |
|
Operation Temperature |
0°.. +40°C |
|
Relative Humidity |
95% Without Condensation |
|
Qualified |
CE, RoHS and WEEE |
|
|
|
