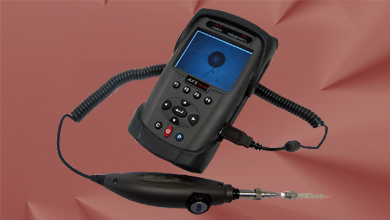

DI1000 Fiber Optic Scope
The DI1000 is the ferrule end fiber scope which enables the technician to view the end surface of the ferrule with an enhanced image of the fiber core and cladding. With DI1000 scope attached to the DR500 series OTDR via the side USB port the technician is able to determine the quality of the surface of the ferrule. The DI1000 enables the technician to see scratches, scrapes, dirt or any residual that might be on the ferrules surface area. If desired the fiber end image can be saved and downloaded to the PC for further analysis. The DI1000 scope includes a range of connectors and tips for a wide range of applications. Please see the package contents below for the complete list of accessories included with the DI1000 kit. Other connectors and tips that are not included in the standard package are also available.

*DI1000 is not included in DR500 series kit and should be ordered separately
DI1000 Package Contents:
1 DI1000 USB 2.0 Digital Inspection probe
1 Tip for SC and FC PC type female connectors
1 Tip for LC PC type female connector
1 Universal tip for 2.5mm PC male connectors
1 Universal tip for 1.25mm PC male connectors
1 Carrying case
1 CD with Connector View (standard) software, driver
1 User's manual
