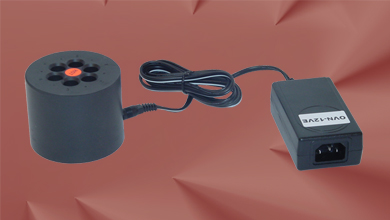

OVN100A Curing Oven 220V 12V car adapter



The OVN100A is a portable curing oven that terminates 6 low cost epoxy/polish connectors at the same time in a matter of minutes. The OVN100A is the ideal tool for a fast, reliable and cost-effective assembly of connectors, with a 90% plus yield. The average time is 5 to 10 Minutes and the temperature is 90C. The oven is for the standard ST, FC and SC connectors which are mounted by hand. The portable curing oven is rugged and molded into a rubber to allow field jobs. The power is a 12 Volt DC to 230 Volt AC adapter and a 12 Volt DC car adapter.


Features

OVN100A Features:
l Terminates 6 connectors at the same time
l

For ST, FC and SC connectors

l

Average time 5 to 10 minutes

l

Temperature 90C

l

Compact

l

Molded rubber layer


Specifications


Connector type

ST, FC and SC
Number of Ports 6
Temperature Range 90C
Time to reach 90C 15 Minutes
Temperature Stability +/- 5C
Accuracy +/- 8C
Average curing time 5 to 10 Minutes
Housing Molded rubber layer
Power 12 Volt DC to 230 Volt AC adapter 1,5 A and
12 Volt car adapter
Qualified CE, RoHS and WEEE
