AHH1 Fiber tracer

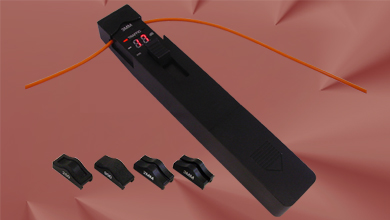

The AHH1 is an essential installation and maintenance instrument by inserting fiber into its adapter head, it can identify SM optical fibers without any damage by detecting the optical signals being transmitted through them so that avoid to opening the fiber at the splice point for identification and interrupting the service. The AAH1 also allows relative core power display and identifies the 270Hz, 1kHz and 2kHz frequency. When they are used to detect the frequency, the continuously audible tone could be heard. There are four types of adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0.

Features

AHH1 Features:
l Wonderful streamline appearance.
l Multi adapter, easy replace.
l Test bare fiber, tight tube optical fiber, optical fiber jumper.
l Identify CW and modulated light 270HZ, 1KHZ, 2KHZ.

AHH1 Package Contents:
1 AHH1 Fiber tracer
1 Adaptor Heads (4pcs.)
1 Portable Bag

AHH1 Options:
l AHH4 Certification calibration AAH1

Specifications

Optical Power Reading -40 to+5dBm
Signal Frequency 270Hz, 1kHz, 2kHz
Identification wave length range 8001700nm
Sensitivity -28dBm (@1550nm, bare fiber)
Identification signal type CW, 270Hz±5%, 1KHz±5%, 2KHz±5%
Continuous working time 4 hours
Insert loss (1550nm) Ф250μm: 1.0dB
Ф900μm: 0.5dB
Ф3mm: 0.5dB
Detector model InGaAs
Detector type Ф250μm bare fiber
Ф900μm jacketed fiber
Ф3mm trail fiber
Communication signal indicator direction indicator light + noncontinuous buzzing + signal strength indicator light
Contrast light signal indicator direction indicator light + frequency indicator light + continuous buzzing + signal strength indicator light
Signal direction Left & Right LED indicator
Power Supply 2pcs.1.5V AAA batteries
Operating Temperature -10+50°C
Storage Temperature -20+70°C
Weight 210 grams
Qualified CE, RoHS and WEEE
