OLK63ASMSC Cert. Set CATV OM230/OS430SC


This certification test set is the complete solution necessary for the installer to certify, test, terminate, trouble shoot and document fiber optic systems. The test set is designed to allow testing of all parameters of fiber optic networks, including output power levels from the fiber, coupled source power and attenuation loss in a fiber. The test set includes the following products:

OM230
The meter is designed for high power optical systems and CATV applications. The meter optimizes a high power Germanium detector. The meter has an user selectable choice of 0,1 or 0,01 dB resolution, on board memory for 500 readings with date and time stamp, a serial port and an USB port for communication with a PC. In the internal memory of the meter 500 readings and results can be stored. The included PC software easily download and document the measurement results stored in the memory. The results can be printed directly in detail or as list from the software or can be saved in a spreadsheet file. The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.

OS430SC
The sender is for outside plant and single-mode fiber. The connector output can be adapted to any cable plant with hybrid adapters or hybrid cables. This unit is easy to operate with a wavelength/power switch, which selects optical wavelengths or disables the unit. There is also a switch which select between either the CW or 2 kHz output for the transmitting wavelength. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combinated with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce the output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. The sender is delivered in a protective rubber boot.


Features

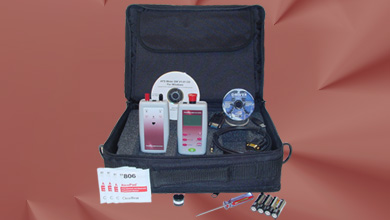

OLK63ASMSC Test Kit Package Contents:
1 OM230
1 OS430SC
1 AD130 (SC)
1 SmartWare V3.00
1 CBL100 (OM-2xx to Serial Cable)
1 CBL200 (Serial to USB Cable)
2 Product Manual
1 CALM Calibration Meter
1 CALS Calibration Sender
1 Trim Tool
4 Alco Wipe

OLK63ASMSC Options:
   - See options list

Specifications

OM230 (POF APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Single-mode, Long wavelengths, CATV
Calibrated (λ)Wavelength 1310nm and 1550nm
Dynamic Range +20 dBm to -30 dBm
Detector Type High Powered Germanium in Modular Housing
Connectors ST, SC, FC
Adaptor Options See options list
Accuracy (@25C, -20.0 dBm) 0.25 dB
Measurement Units dBm (absolute) - dB (relative)
Resolution 0.1 dB or 0.01 User Selectable
Storage 500 Readings with Time and Date Stamp
Serial Interface Yes
USB Interface Yes
PC Software Documentation Software
Controls 7 Soft Buttons
Buttons On/Off, Backlight, λ/↑, dB-dBm/↓, Zero Reference/Select, Save/Delete, Test/Results
Power 2 AA Batteries or AC Power Converter
Low Battery Indicator Yes
Display Graphical LCD with Backlight
Auto-Shutdown Yes
Protective rubber boot Yes
Testing reference guide Yes
Enclosure Size Compact Handheld (L-4.94"/W-2.75"/H-1.2")
Weight 230 gram
Operation Temperature -10C to +50C (45% Hum, non condensing)
Storage Temperature -20C to +60C (75% Hum, non condensing)
OS430SC (Single mode APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Outside plant single mode
Wavelength (λ) 1310 nm and 1550 nm
Output type Laser
Modulated Frequencies 2 kHz/CW (Continuous Wave)
Stability, 1 hour Less than 0.05 dB
Power Output >-8 dBm, individually adjustable with mechanical screw
Connector SC
Controls Front panel slide switches
Power  2 AA Batteries or AC Power Converter
Low battery indicator Yes
Protective rubber boot Yes
Enclosure Size L: 125 mm, W: 70 mm, H: 30 mm
Weight

180 Gram

Operation Temperature -10C to +50C (45% Hum, non condensing)
Storage Temperature -20C to +60C (75% Hum, non condensing)
OM200A Reporter software specifications SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Number of measurements 500 measurements
User information Company name
Phone number
Name
Job ID
Fiber parameters: User fiber ID
Fiber type
Fiber details
Connector type
Meter readings Model meter
Calibration date
Reading ID
Result
NanoWatt
dB/dBm
Wavelength
Time and date
Meter fiber parameters Fiber length (km)
Number of connectors
Number of splices
Fiber analyse results Wavelength
Actual reading
Allowable loss
Overhead margin
Pass/fail
Qualified CE, RoHS and WEEE
