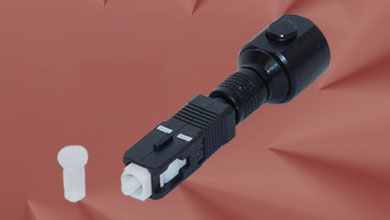

BFA130  Bare Fiber adapter SC



This adapter is for mounting a connector to a bare fiber. This is ideal for optical testing and by repairs. The adapter is for both multimode and singlemode with a cladding of 125 um. The fiber buffer (coating) may have a diameter between 0,25 and 1 mm. The loss is lower than 1 dB against a standard connector.

Specifications

Application Optical testing, repairs
Connector SC
Material Ferrule: ceramic
Body: metal
Fiber Type Multimode and singlemode 125um cladding
Fiber buffer/coating Diameter 0.25 to 1 mm
Optical Loss < 1 dB against standard connector
Qualified CE, RoHS and WEEE
